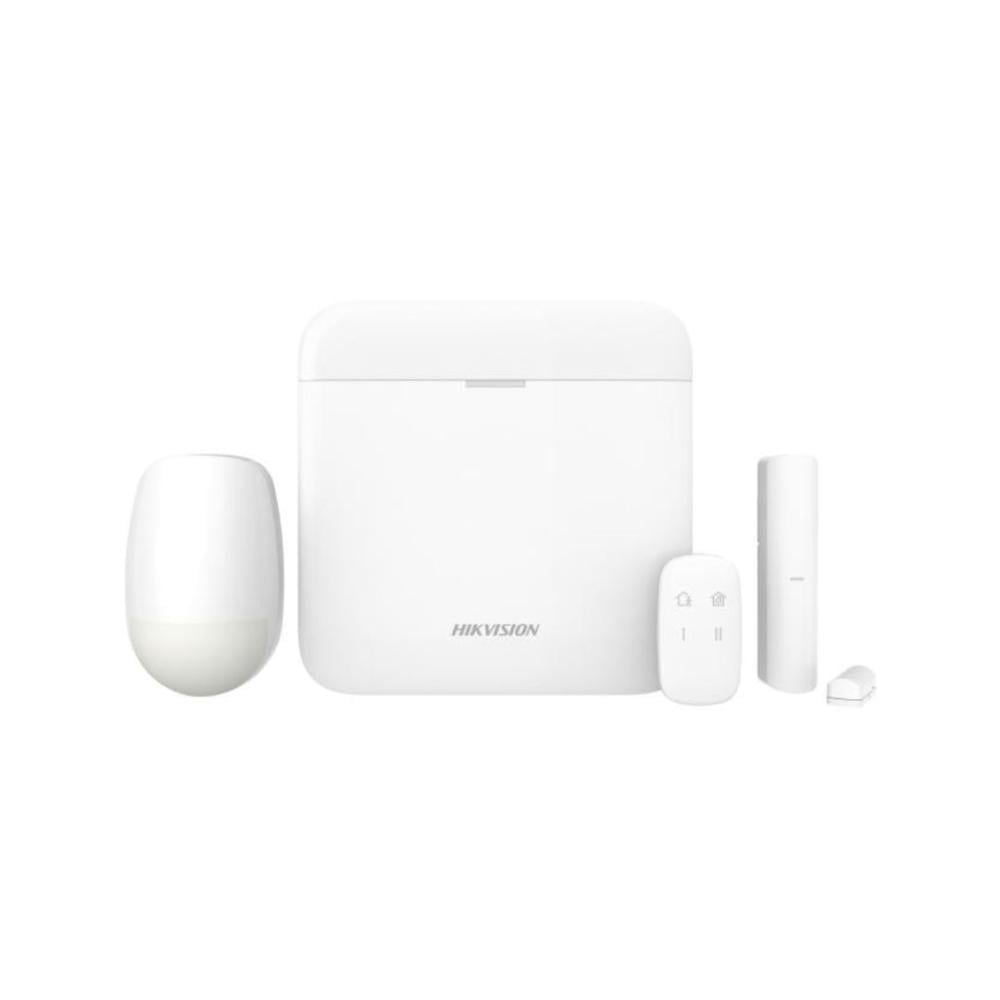

Wireless control panel with remote, motion sensor, and door sensor from Hikvision - DS-PWA64-Kit-WB

Hikvision DS‑PWA64‑Kit‑WB – AX PRO Wireless Intrusion Alarm Kit What's Included:

• DS‑PWA64‑L‑WB (Main wireless alarm panel)
• DS‑PKF1‑WB (Remote control or keypad)
• DS‑PDP15P‑EG2‑WB (PIR motion detector)
• DS‑PDMC‑EG2‑WB (Magnetic door/window sensor)

Key Features:

✅ Management and Security:

• Supports up to 64 wireless zones or 48 PIR cameras
• User classification: 1 Installer, 1 Admin, 30 Users
• Voice prompts, built-in speaker, and event log with a capacity of 5000 events

✅ Connectivity:

• Supports Wi‑Fi, LAN, and GPRS via SIM card
• ARC protocols like SIA‑DC09 (Contact ID) and ISUP, with support for video verification and remote control

✅ Wireless Security:

• 433 MHz frequency
• Frequency-hopping technology with AES-128 encryption for secure signal transmission

✅ Power & Reliability:

• Internal power supply with built-in lithium battery lasting 12–16 hours
• LED indicators for system status (armed, alarm, fault, cloud, power, etc.)

✅ Additional Capabilities:

• RS‑232 ports, supports up to 2 wireless repeaters, 4 wireless sirens (2 indoor + 2 outdoor)
• Compatible with a wide range of devices such as PIR cams, keypads, multi-transmitters, etc.

✅ Easy Setup and Programming:

• Configuration via Hi‑Connect, Hi‑Pro Connect, web interface, IVMS‑4200, or the cloud
• Supports remote firmware updates, auto arming/disarming schedules, and forced arming even when zones are open

General Specifications:

| Dimension | 170×170×38.6 mm |

| Weight | 557.5 g |

| Operating Temperature | -10°C to +55°C |

| Color | White |

| Backup Power | 12–16 hours (depending on usage) |

Summary:

The DS‑PWA64‑Kit‑WB is a smart, fully wireless intrusion alarm kit designed for residential and small business use. It offers multi-network support, up to 64 zones, internal backup battery, and simple remote control—all managed easily via mobile or web platforms.
